Description

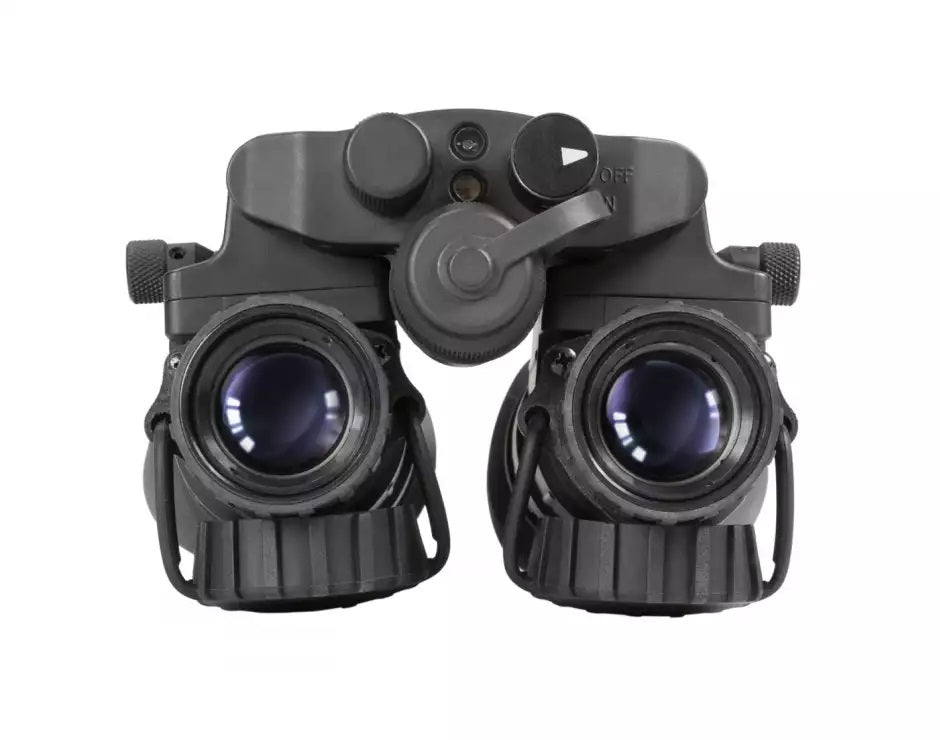

squad binocular night vision goggle AGM NVG-40 3AL1 Dual Tube Night Vision Goggle/BinocularThe AGM NVG 40 is a dual channel night vision system. With a 40 field of view, it provides a large visual field without needing to move the binoculars. The NVG 40 uses advanced multi coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark. For hands free use of the NVG,
The AGM NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The NVG-40 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.
NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
Warning: California's Proposition 65
*All night vision products of AGM are built to order only. Lead time 4-6 weeks.
- Redundant dual-tube design
- True stereoscopic vision
- Lightweight & compact
- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- Limited 3-year warranty
- Image Intensifier Tube: Gen 3 Auto-Gated "Level 1"
- Magnification: 1x
- Lens System: 27 mm, F/1.3
- FOV: 40°
- NVG Interface Shoe
- Bayonet/Horn Interface Shoe
- Demist Shield (2)
- Sacrificial Window
- Soft Carrying Case
- Lens Tissue
- Packing Box
- Battery Adapter
- User Manual
- Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
SPECIFICATIONS
- Image Intensifier Tube: Gen 3 Auto-Gated "Level 1"
- Resolution: 64-72 lp/mm
- Field of view cleanness by zone: Gen 3 IIT 3AL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
- Magnification: 1x
- Lens System: 27 mm, F/1.3
- FOV: 40°
- Focus Range: 0.25 m to Infinity
- Eye Relief: 25 mm
- Diopter Adjustment: -6 to +2 dpt
- Led Indicators: Low Battery IR On Excessive Light Conditions
- Infrared Illuminator: Yes; Two power levels
- Manual Gain Control: Yes
- Bright Light Cut-Off: Yes
- Automatic Shut-Off System: Yes
- Battery Type: One CR123A (3V) or AA (1.5 V)
- Battery Life (Operating): Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
- Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
- Storage Temperature Range: -50°C to +70°C (-58°F to +158°F)
- Weight: 645 g (1.42 lbs)
- Overall Dimensions: 115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
- Package Includes: Night Vision Goggles, NVG Interface Shoe, Bayonet/Horn Interface Shoe, Demist Shield (2), Sacrificial Window (2), Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual
Why Choose AGM Global Vision Night Vision Goggles: Technologies and Features
AGM Global Vision night vision goggles are crafted for use with helmets and head mounts, and based on Military-tested designs that have repeatedly stood up to harsh and changing weather conditions, rough terrain, marine and jungle environments, and even combat situations.
Our goggles are equipped with the highest-quality image intensifier tubes, from Gen 2 to Gen 3, and can support single or double viewfinders. We understand the importance of user agility, comfort, and control:
- Durable, long-lasting, lightweight housing made of aircraft aluminum alloy
- Hands-free operation with head-, helmet-, and tripod-mountability
Our night vision goggles use light amplification technology to collect the ambient light in the environment, such as moonlight or starlight, to artificially source infrared illumination via the device’s objectives lenses. This light energy is made of photons, which are converted into electrical energy, or electrons, via the photocathode tube. Using internal electrical and chemical processes to amplify the number of electrons hitting the device’s phosphor screen, this reaction produces a visible image in near to total darkness.
AGM Global Vision always strives to use the latest available technologies to develop our night vision goggles, providing superior performance when it matters most.
Our Night Vision Goggles
We offer a wide range of night vision goggles, with features like:
- IP 65 protection
- High-grade aluminum alloy casing
- Head or helmet-mountable for hands-free usage
- Dual mini rails for transitioning quickly between the head and helmet mount
- High-light cut-off
- Integrated IR Illuminator
- Compact and rugged design
- Ergonomic, easy-to-operate controls
- Limited three-year Warranty
Our catalogue of cutting-edge night vision goggles is diverse and always growing. Night vision technologies continue to evolve, and the tactical needs of law enforcement, security, military, and experts will follow suit. We work to build night vision devices that are tough, compact, convenient, and adaptable enough to support the most demanding organizations and experts.
AGM Global Vision: Advanced Devices for Tactical Professionals
All AGM Global Vision night vision goggles are built to handle any scenario, giving you the confidence you need to feel secure, agile, and in control. Because our night vision goggles are waterproof, head and helmet-mountable, weather-resistant, and compatible with a variety of cameras, and tripods, they’re always a top choice for professionals who rely on night vision technology to reveal their nighttime surroundings.
